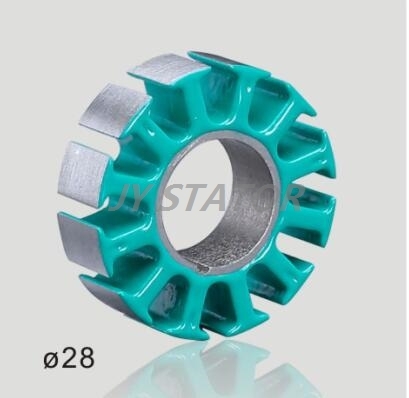

28*13(14)*12slots*0.2mm motor stator core with silicon steel sheet

OD: 28mm

ID: 13mm or 14mm

Slots No.: 12

Material: 20JNEH1200--0.2mm

Coating Thickness: 0.15-0.25mm

Coating Color: Green or Blue

Lamination technology: Interlock

• Lamination & Stamping

  This 2810 stator lamination   made from Low Eddy Current losses   0.2mm silicon steel with 28mm OD is suitable for 28 series   drones; fpv stator   height is customized according to your needs, some typical height used for drone as flow:

FPV Motors：

2807/ 2810/ 2812/ 2820/

For Fixed Wing   Drone with long shaft:

2812 /2814/ 2820 /2826

• Drone stator Epoxy Coating:

  H Class 180 ℃ coating with electrostatic technology which is more suitable for low voltage motors like drone and UAV Application;   we apply 100% hi-pot testing to ensure the quality for all fpv stators;

• Drone stator Winding:

  Customs Winging acceptable,   KV1100 or KV1300 is standard one in the market, but we accept any customs winding with different KV Value according to your need; we do 100% electrical performance testing Hi-pot, 3P Resistance testing, Surge Wavefor testing for all 2810 stators and 28 series stators;
